Wireless Error Proofing Systems

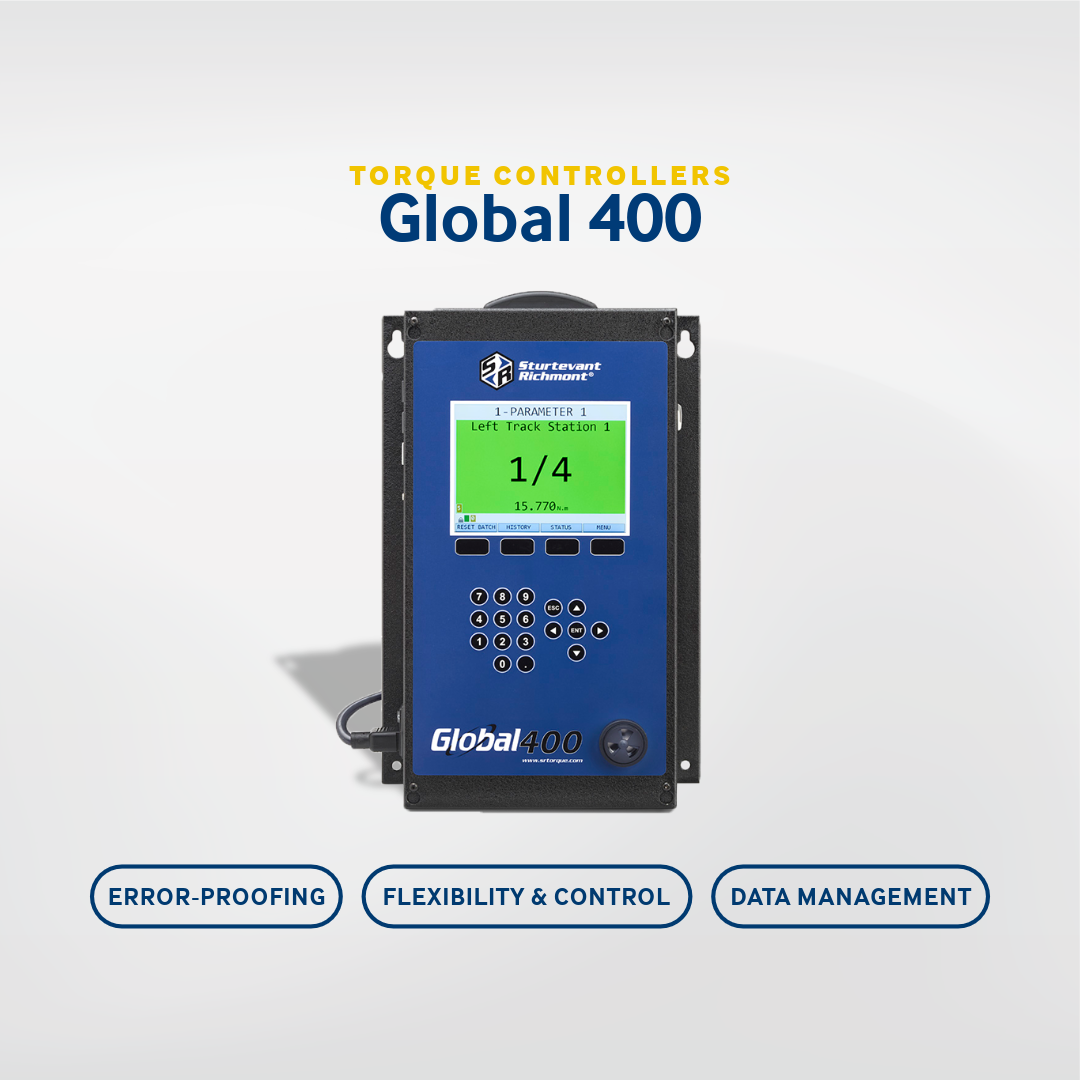

The Global 400 performs as a station dedicated process controller that organizes, directs workers, tools, and tasks.

Key Features

• Flexibility and Control: Allows changes to processes with ease and is ideal for flexible assembly lines with various optional components
• Error Proofing: Manages up to 16 torque tools and 8 holding tools with 100 parameter sets, organized into jobs and groups for seamless production
• Networking Capabilities: Connects with MEDS via Ethernet or 24 Volt I/O, enabling simultaneous communication for production control and data aquisition
• Data Management: Logs up to 20,000 network events and 10,000 torque events, with configurable reporting via Global 400 Manager Software
• Tool Compatibility: Works with various torque and angle and angle wrenches, click wrenches, and pneumatic sensor transceivers. Tools are paired easily and operate within a recommended 15-meter distance

Additional Benefits

• Reduced Costs: Lowers warranty costs and increases throughput
• Ease of Use: Simple tool pairing and minimal training requirements
• Helps achieve quality goals and provides continual guidance to new workers
• Error Proofing by Guidance: Provides error notifications and prevents batch completion until all fasteners are compliant

Data and Error Management

• Global Host Data Repository: Web-based, accessible from anywhere with internet, helps in data mining for trends and specific build aspects
• Behavior Modification: Ensures error proofing by not advancing batch counts on rejects and requiring supervisor intervention for resets after reaching reject limits

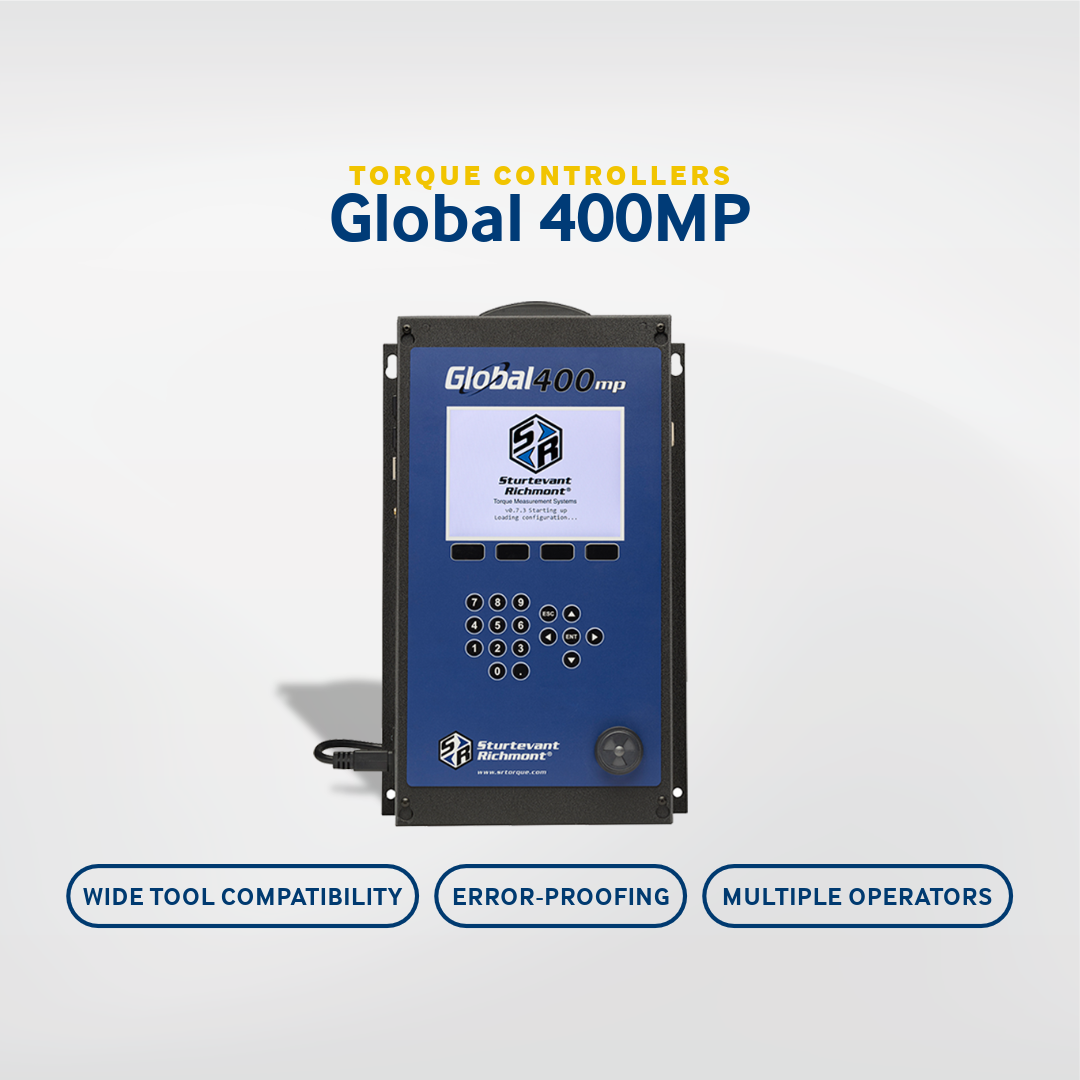

The Global 400mp is a powerful wireless error-proofing system designed for assembly cells with multiple operators and tools. It integrates hand tools into your MES, cutting rework and warranty costs while boosting throughput and quality.

Key Features

• Independent Operator Functionality: Supports up to four operators working independently, each with their own network connection, allowing for efficient, individualized workflows
• Comprehensive Tool Compatibility: Works with various digital torque wrenches, pneumatic sensor transceivers, and patented holding tools, with numerous interchangeable heads for versatile use
• Robust Error Proofing and Traceability: Provides real-time error-proofing guidance and complete traceability for each fastening, enhancing quality control and process consistency

Compatible with the Following Tools:

• TAC Digital Torque and Angle Wrench
• 1350 TD Digital Torque and Angle Screwdrivers
• 1350 Series Exacta 2 Digital Torque and Angle Wrenches
• 1250 Series Exacta 2 Digital Torque and Angle Wrenches
• 1200 Series Exacta 2 Digital Torque Wrenches
• SLTC FM 2.4 GHz Preset Wireless Click Wrenches
• Holding Tool Technology Wrenches

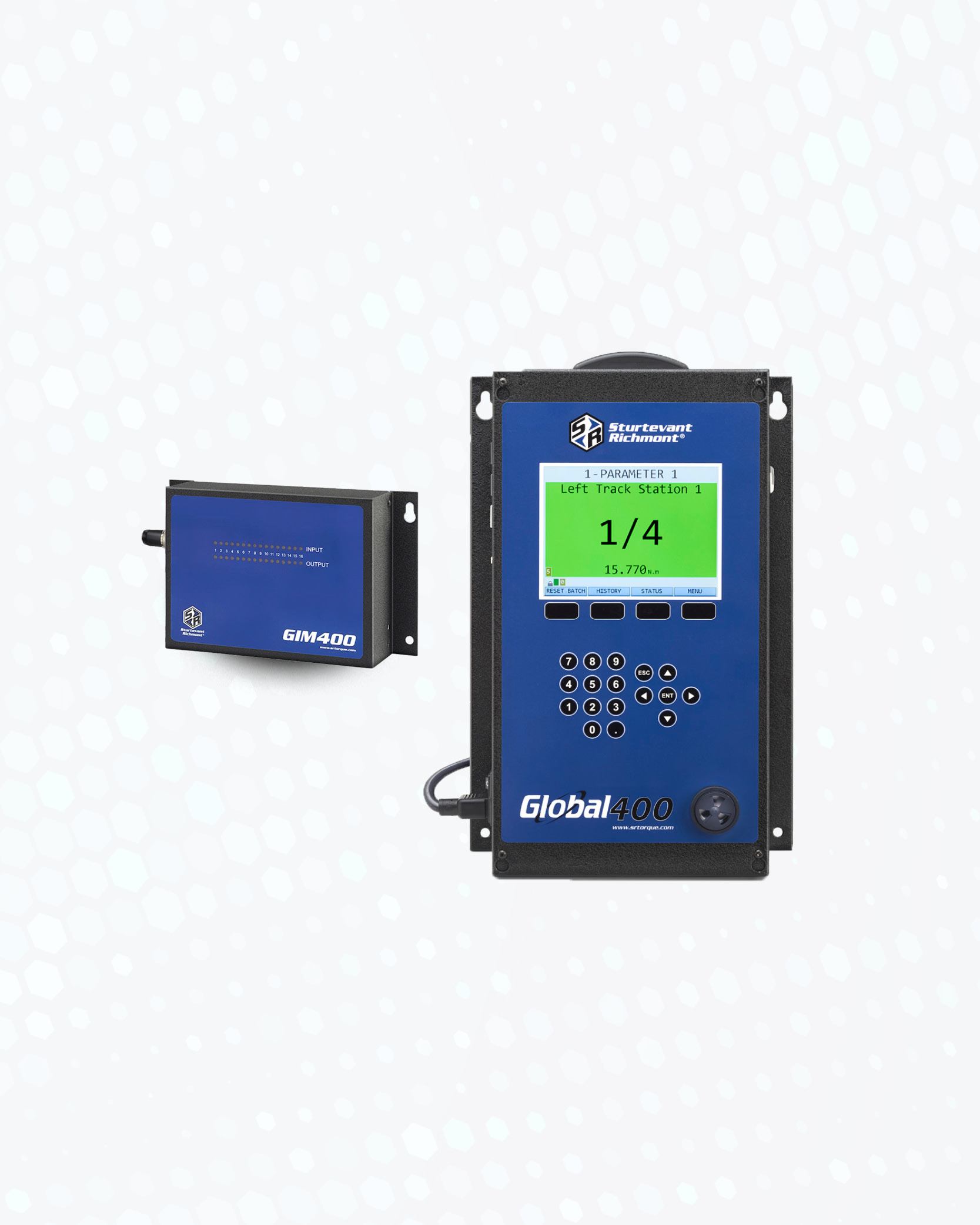

The GIM 400 is a robust partner for the Global 400, forming a "Power Duo" of error-proofing in assembly processes. The GIM 400 provides unparalleled control and flexibility over assembly processes, allowing for both strict process management and operator-led decision-making, making it an essential tool for enhancing error-proofing operations.

Key Features

• Ease of Installation and Configuration: Acts as a virtually programmable logic controller (PLC) that can be configured via the Windows-based Global Manager software, eliminating the need for professional programming
• I/O Functionality: Equipped with sixteen (16) inputs and outputs with LED indicators, facilitating easy installation and troubleshooting, and can be configured for up to 100 binary I/O in conjunction with a PLC.
• Versatile Power Supply: Can power peripheral devices like light stacks and socket trays
