Effortless Charging, Maximum Efficiency

The new TAC 2 preset wireless click-wrench is here, along with the upgraded charger base.

Optimize performace with new charger base

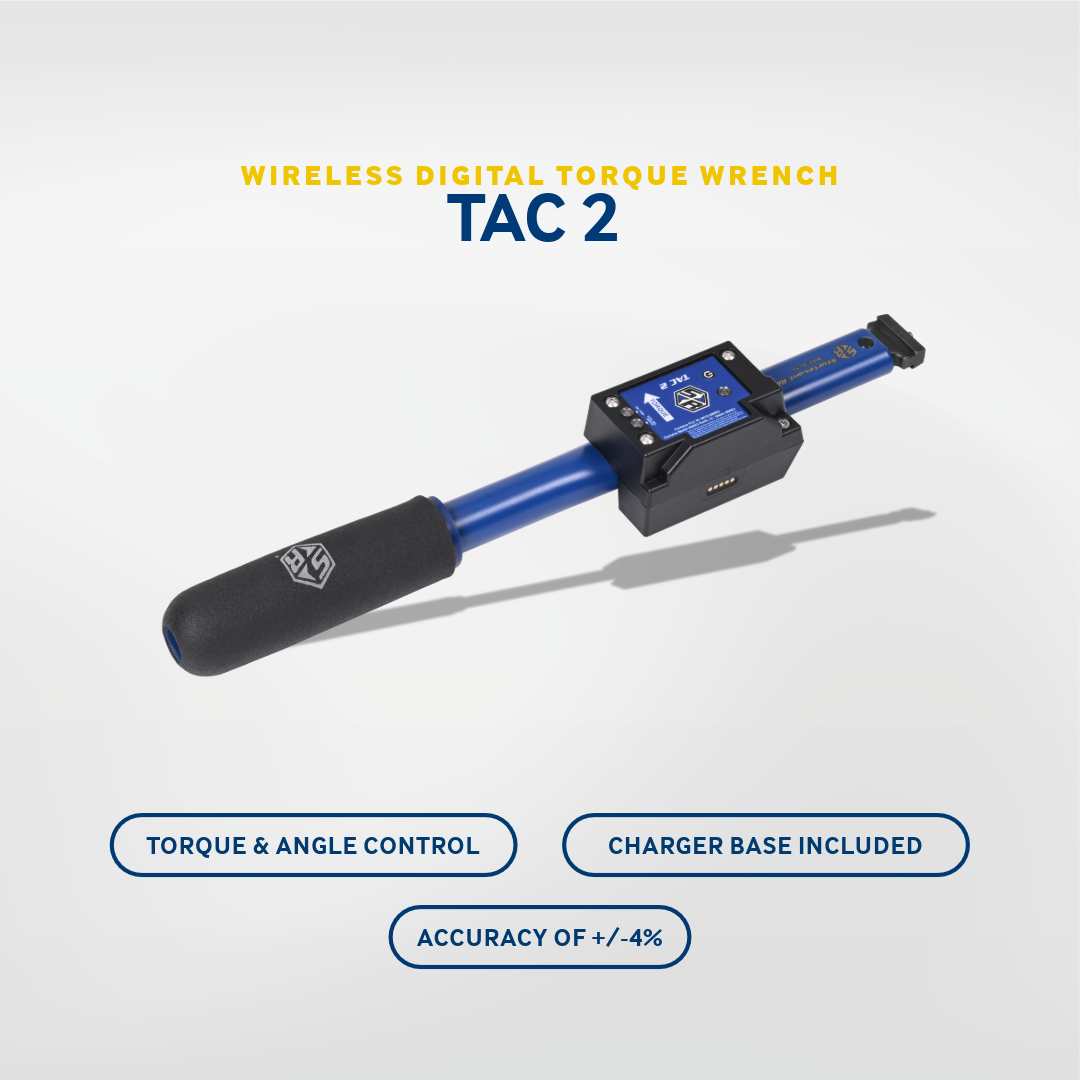

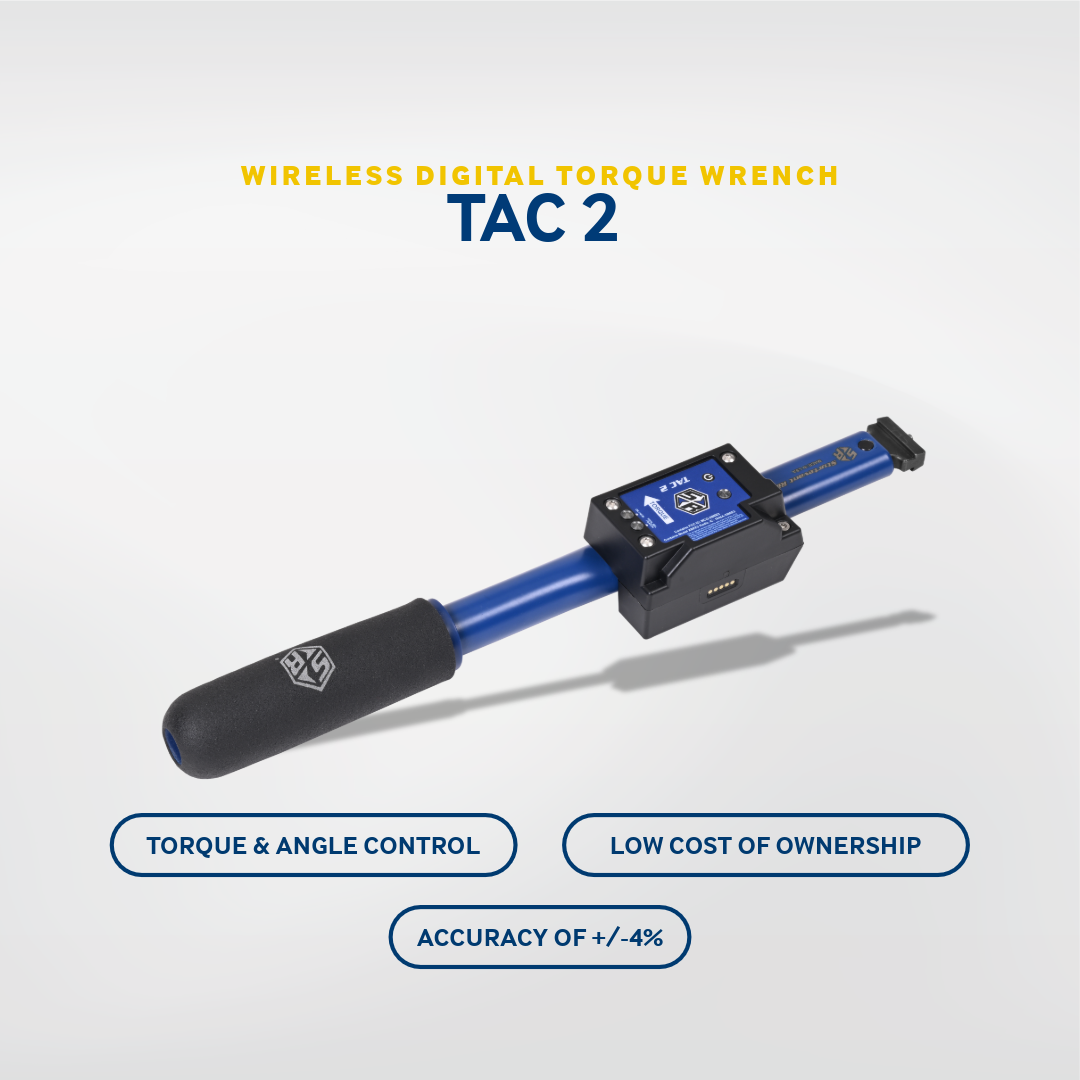

The TAC 2 offers precise torque and angle monitoring with two modes of operations: Peak and Torque Angle Monitoring (TAM). The TAC 2 features an audible click when preset torque is achieved, a green LED when specifications are met, and a red LED when they're not. The tools are durable and come with a powder-coated finish. Additionally, they wirelessly report time and date-stamped reports, and they are compatible with various controllers, offering torque accuracy of +/- 4%.

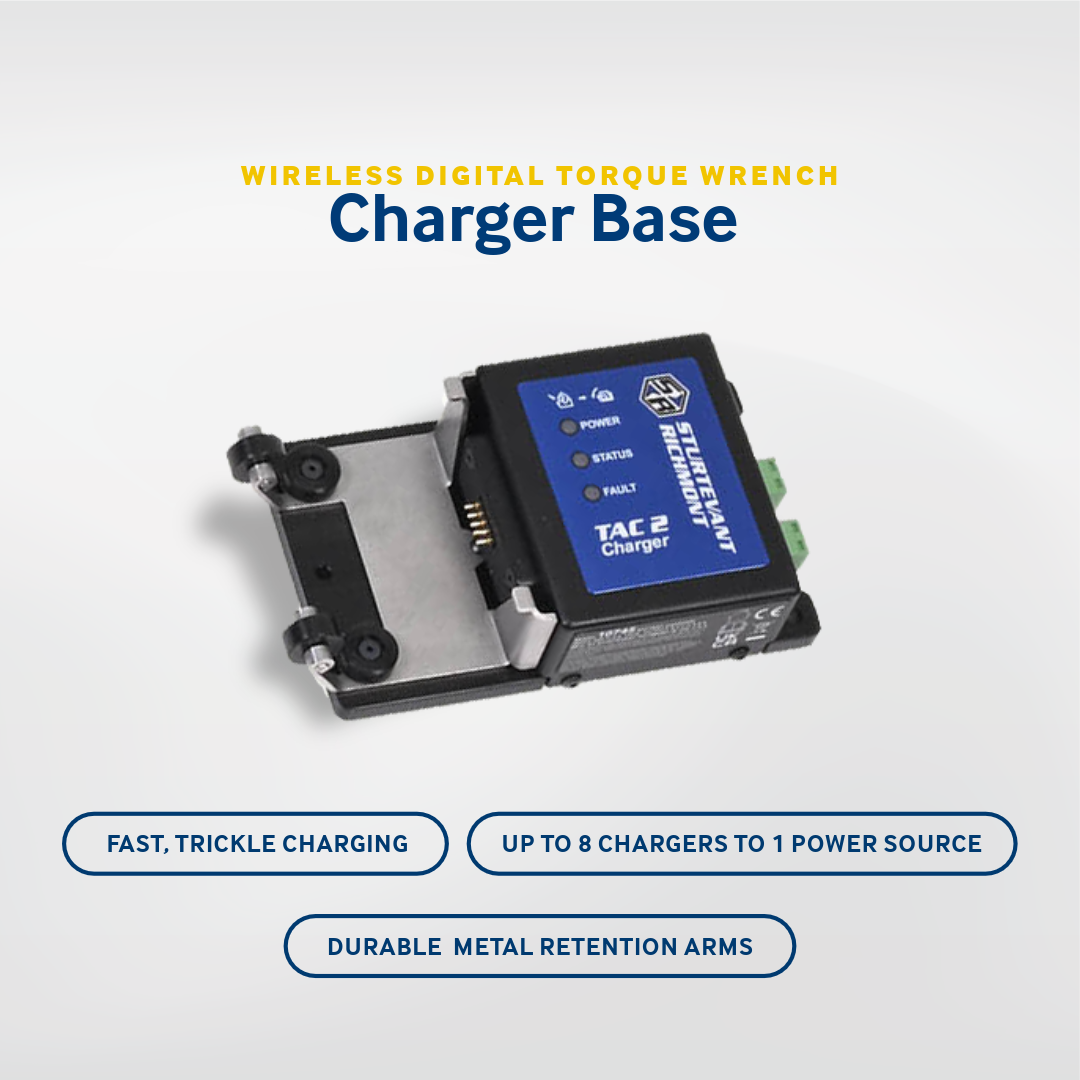

The new charger base provides fast and trickle charging. Up to 8 bases can be connected and powered from one source. It features LEDs for charge status, battery health, and error alerts and is built with durable metal retention arms for easy mounting.

Charging Options

We offer multiple ways to power the charging base to fit your setup. The standard method uses an AC adapter that plugs into the charging base and then into a wall outlet. For direct integration with our controllers, a 24VDC cord can be used to power the charger base directly. Additionally, we offer a daisy chain cable that allows your to connect up to 8 charging bases to a single power source. All cables are sold separately.

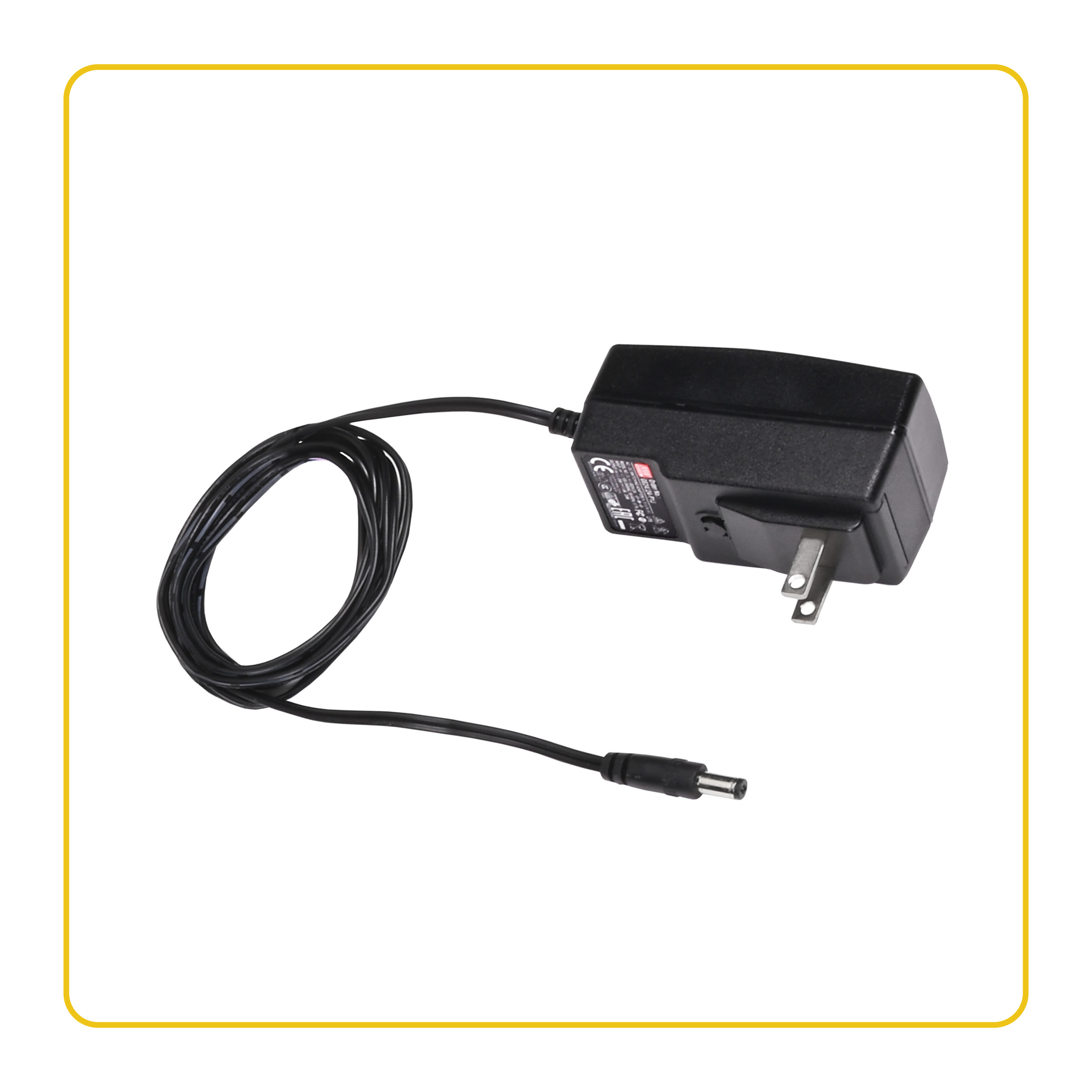

AC Adapter

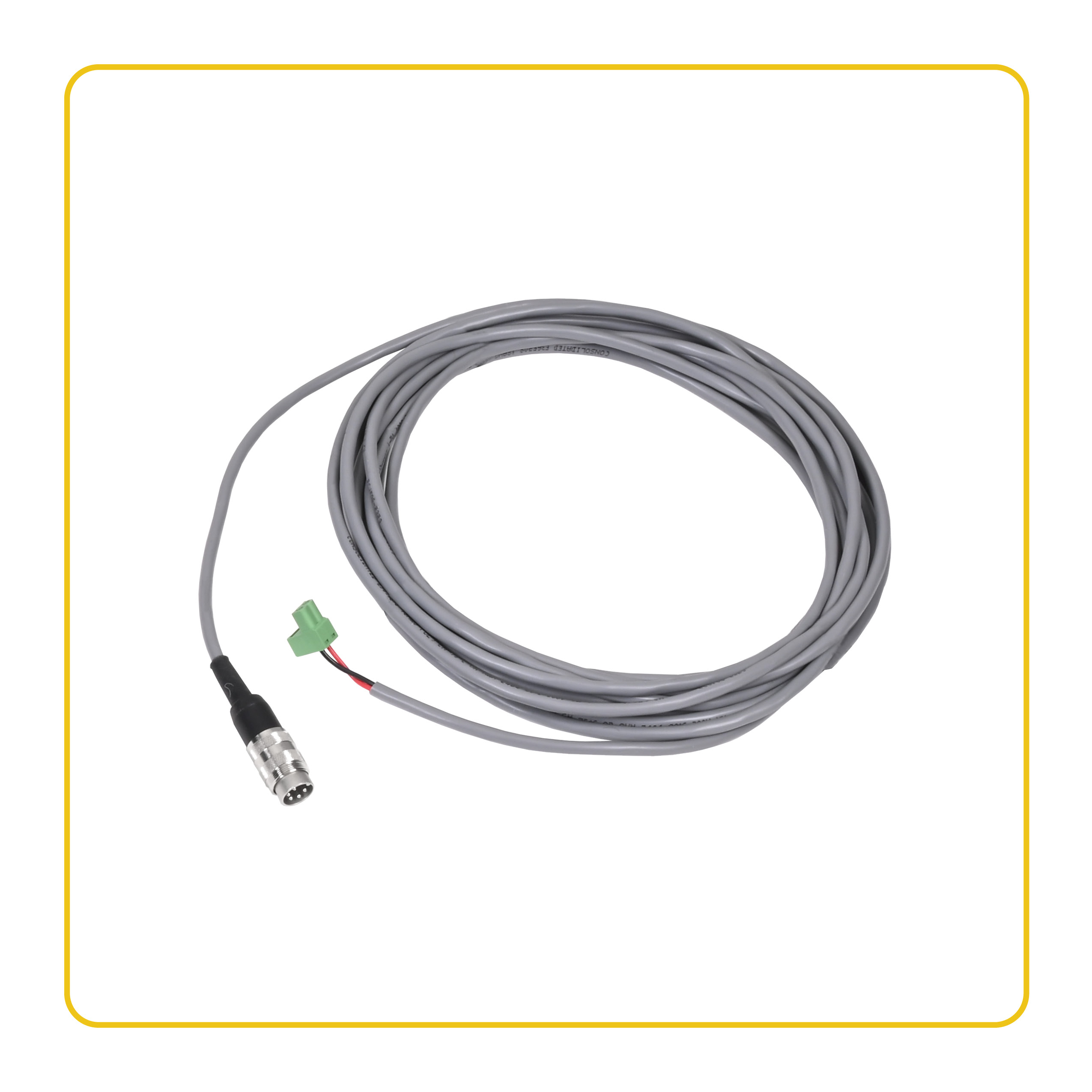

24VDC Cable

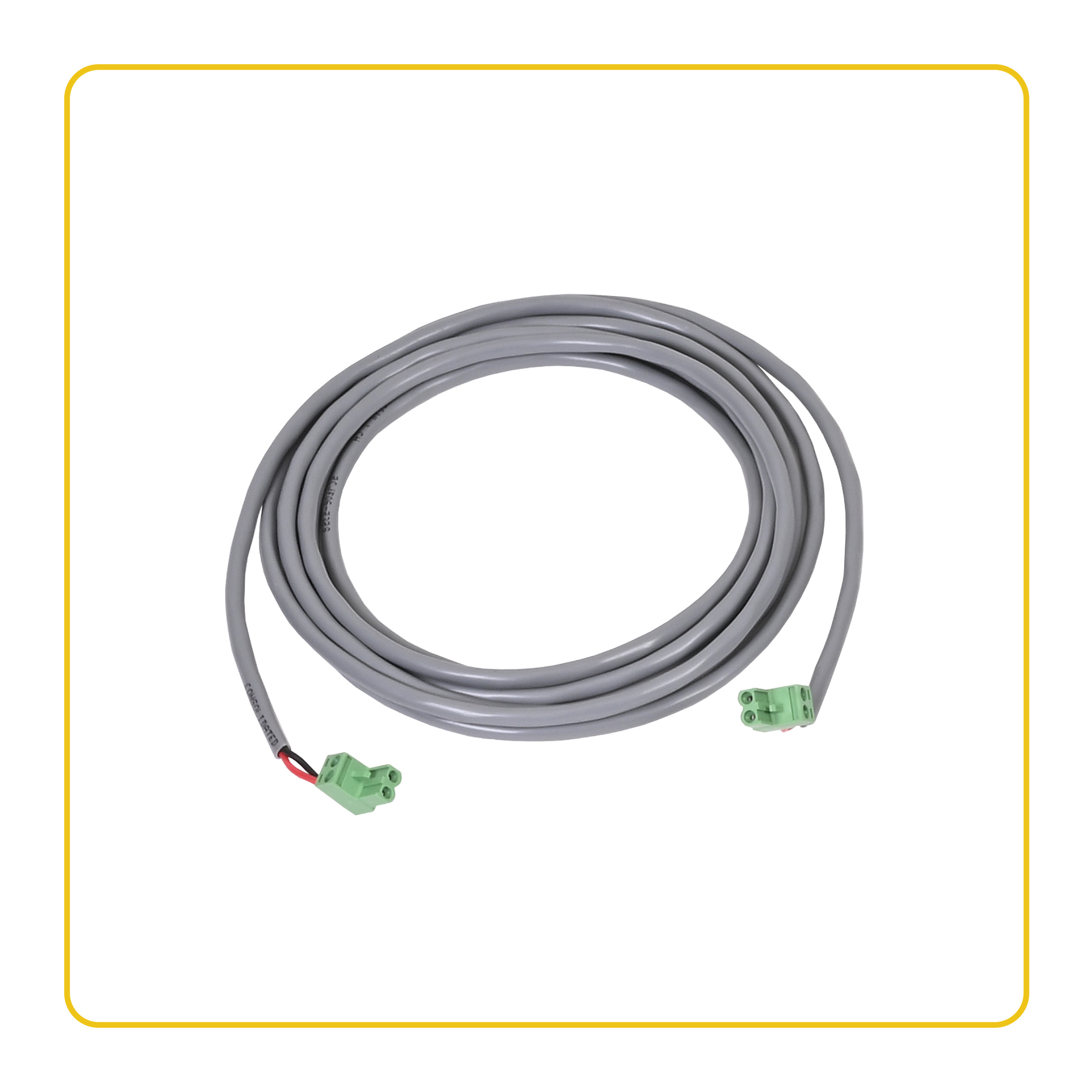

Daisy Chain Cable

 Product Details

  • Audible/tactile click when preset torque is achieved
  • 2 modes of operation: Peak and Torque Angle Monitoring (TAM)
  • TAC 1 tools can be upgraded to TAC 2 tools
  • New charger base eliminates the need to change batteries
  • Measure torque and angle and provides an audible click when torque is achieved
  • Green LED visible when torque or angle is achieved
  • Wirelessly reports time and date stamped results and graph in real time
  • Blue LED flashes when tools is selected, indicates solid when batch is complete
  • Fully compatible with Global 400, Global 400MP and the TCV-e2
  • Torque accuracy of +/-4% or better of present value from 20-100% of capacity
  • Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
  • When using standard SR interchangeable heads no change is needed to the calibration of the tool due to common center line design

 Product Details

  • Allow for fast and trickle charging of TAC 2 tools
  • Up to 8 charger bases can be powered from one source
  • Charger base can be powered via AC adapter cord or 24VDC supply cable powered by controller
  • Base indicates charge status, battery health, and error alert via LED system
  • Durable metal retention arms
  • Can be mounted horiztonally or vertically
  • Charger base is needed for use of TAC 2
  • Charger base and cables sold separately

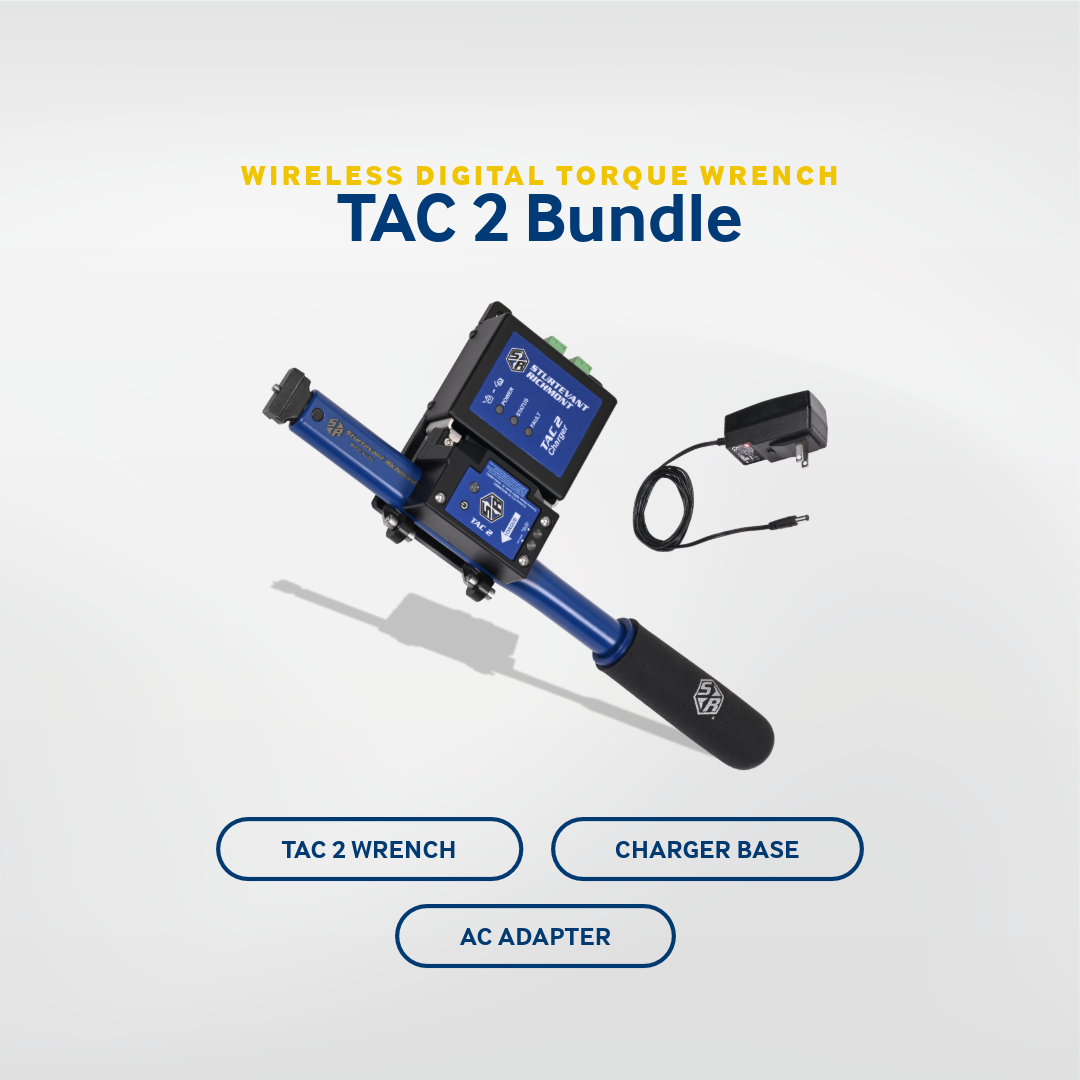

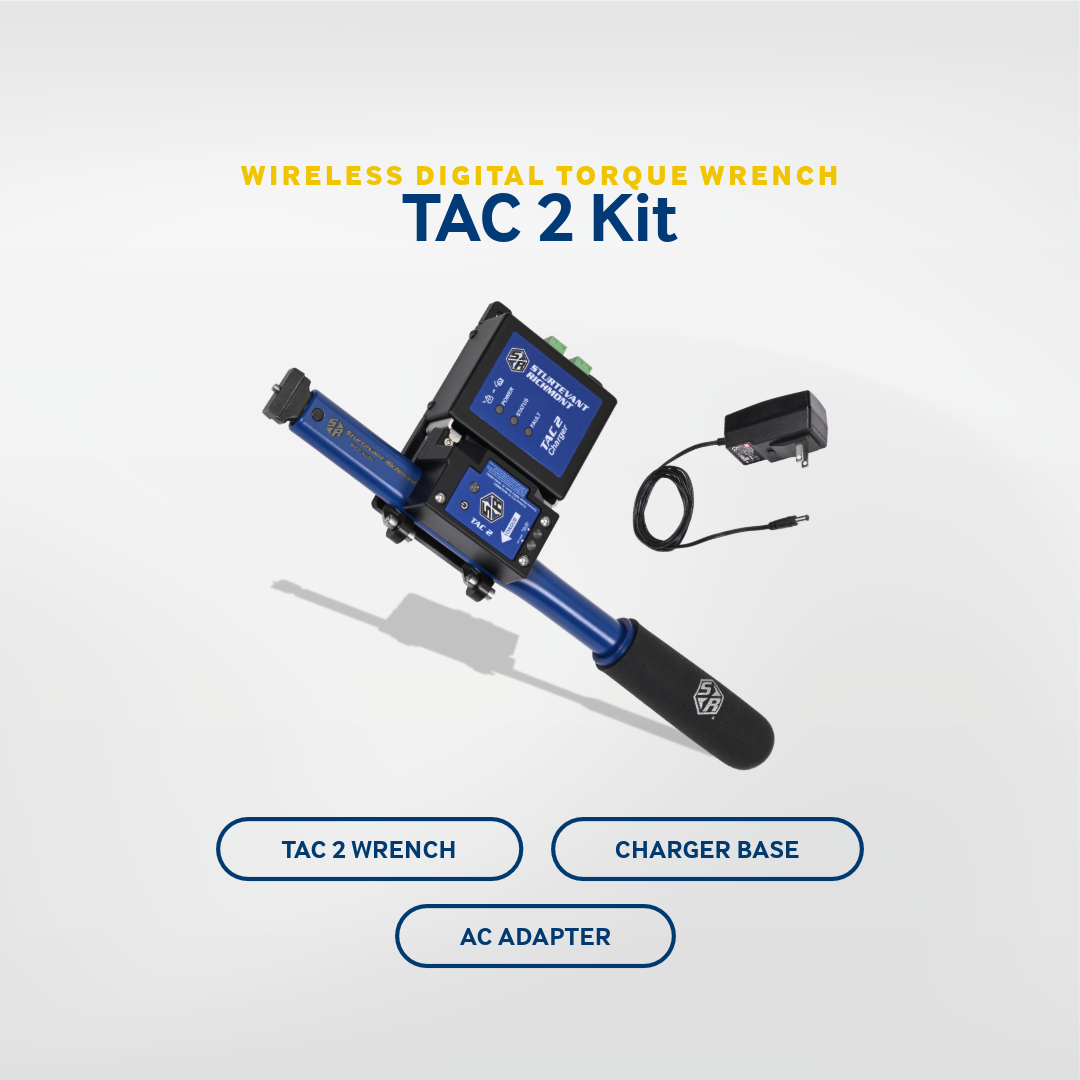

TAC 2 Bundles

  • Includes TAC 2 wrench, charging base and AC adapter power cord

Part No. / Model

  • 80912B / TAC2-150I Bundle
  • 80913B / TAC2-300I Bundle
  • 80914B / TAC2-750I Bundle
  • 80915B / TAC2-1800I Bundle
  • 80921B / TAC2-1800I Ergo Bundle

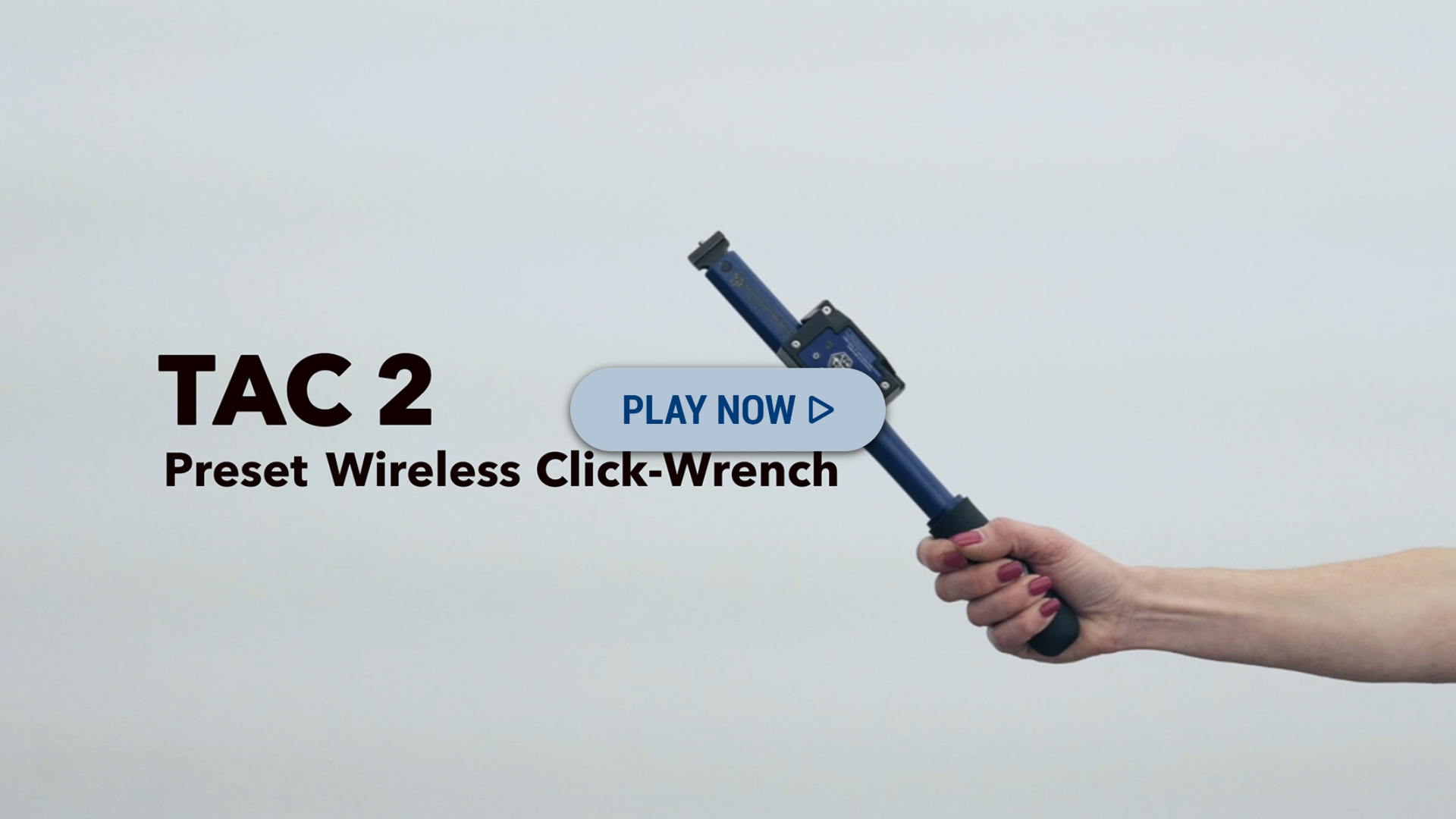

Product Video

  1. TAC2 Digital Torque and Angle Wrench, 30 - 150 in-lb 810912 View product
  2. TAC2 Digital Torque and Angle Wrench, 60 - 300 in-lb 810913 View product
  3. TAC2 Digital Torque and Angle Wrench 150 - 750 in-lb 810914 View product
  4. TAC2 Digital Torque and Angle Wrench, 360 - 1800 in-lb 810915 View product
  5. TAC2 Digital Torque and Angle Wrench ERGO, 360 - 1800 in-lb 810921 View product
